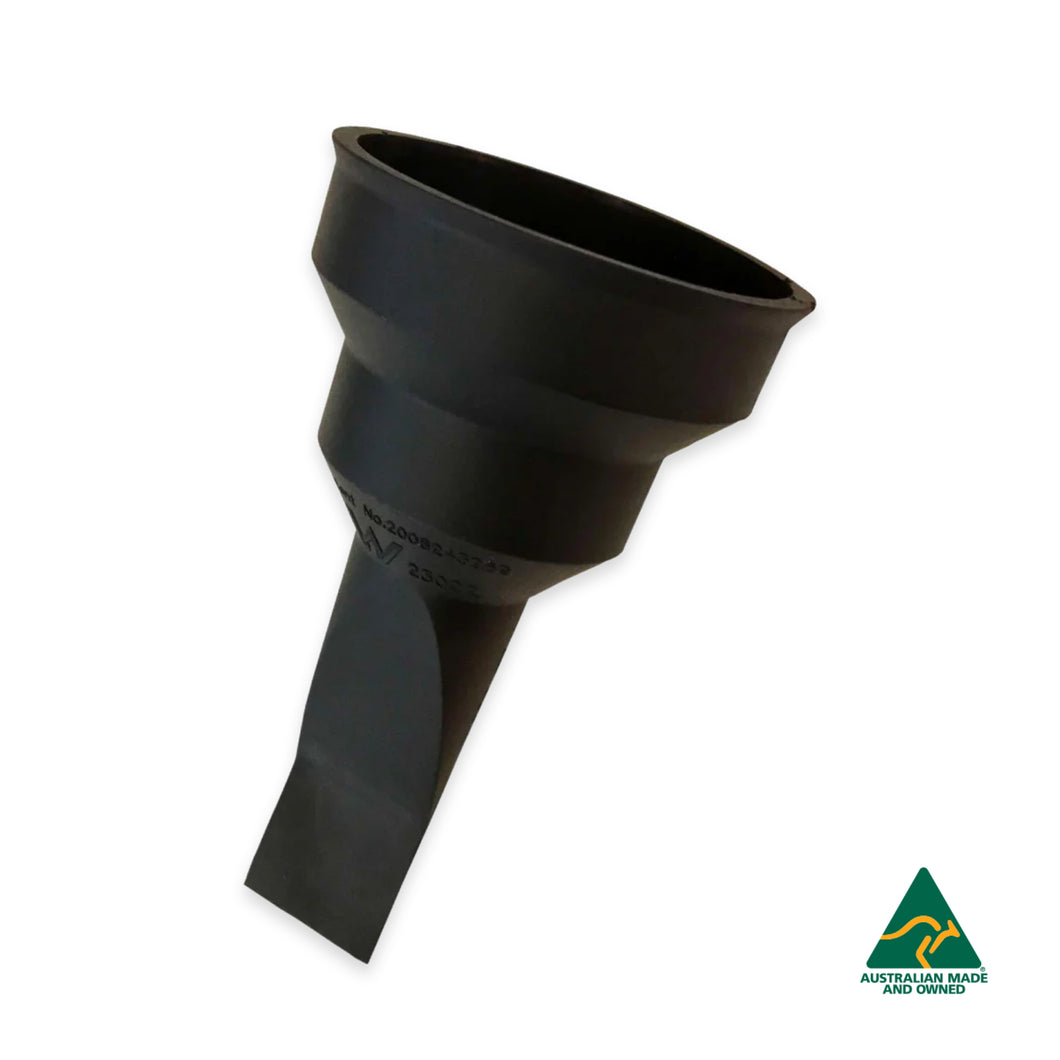

Create a permanent and maintenance free, one-way seal that is easily adaptable to fit either 4"/100mm or 3"/80mm floor and shower drains with the GS01 Grate Seal®.

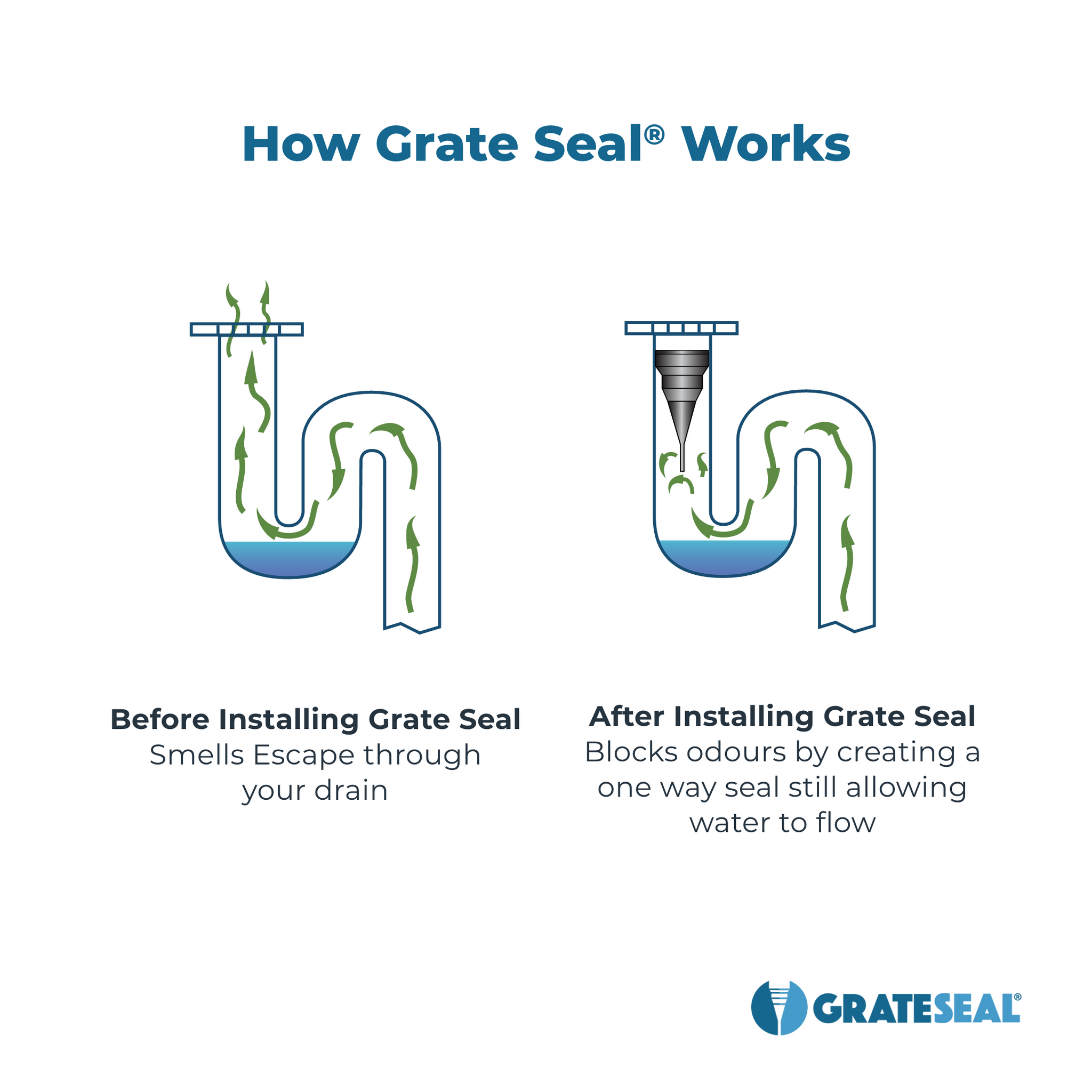

The GS01 Grate Seal® is a specially designed rubber, one-way valve that is easily retro-fitted into 4" or 100mm and 3" or 80mm floor and shower drains preventing sewer gases, airborne bacteria, soap suds, vermin and noise from making their way out of the drainage system into habitable areas.
As a WaterMark® approved product, the one way valve does not restrict flow, and the flow rates achieved more than cope with the maximum allowable flows from plumbing fixtures such as showers. Unlike other products on the market, a water seal is not required for Grate Seal® to be 100% effective making Grate Seal a permanent and maintenance free solution.
Grate Seal® is produced from an antimicrobial polymer compound making it durable and resistant to breaking down and allowing it to be used in a wide variety of applications, including the medical and commercial field.
Grate Seal® is supplied at a low cost considering the problems that are resolved without having to remove or replace tiled surfaces, concrete, waterproofing, etc.
- Unit is one piece and self cleansing.
- No ridges or braces to obstruct or catch waste.
- No fixing required as the seal stays in place through friction.

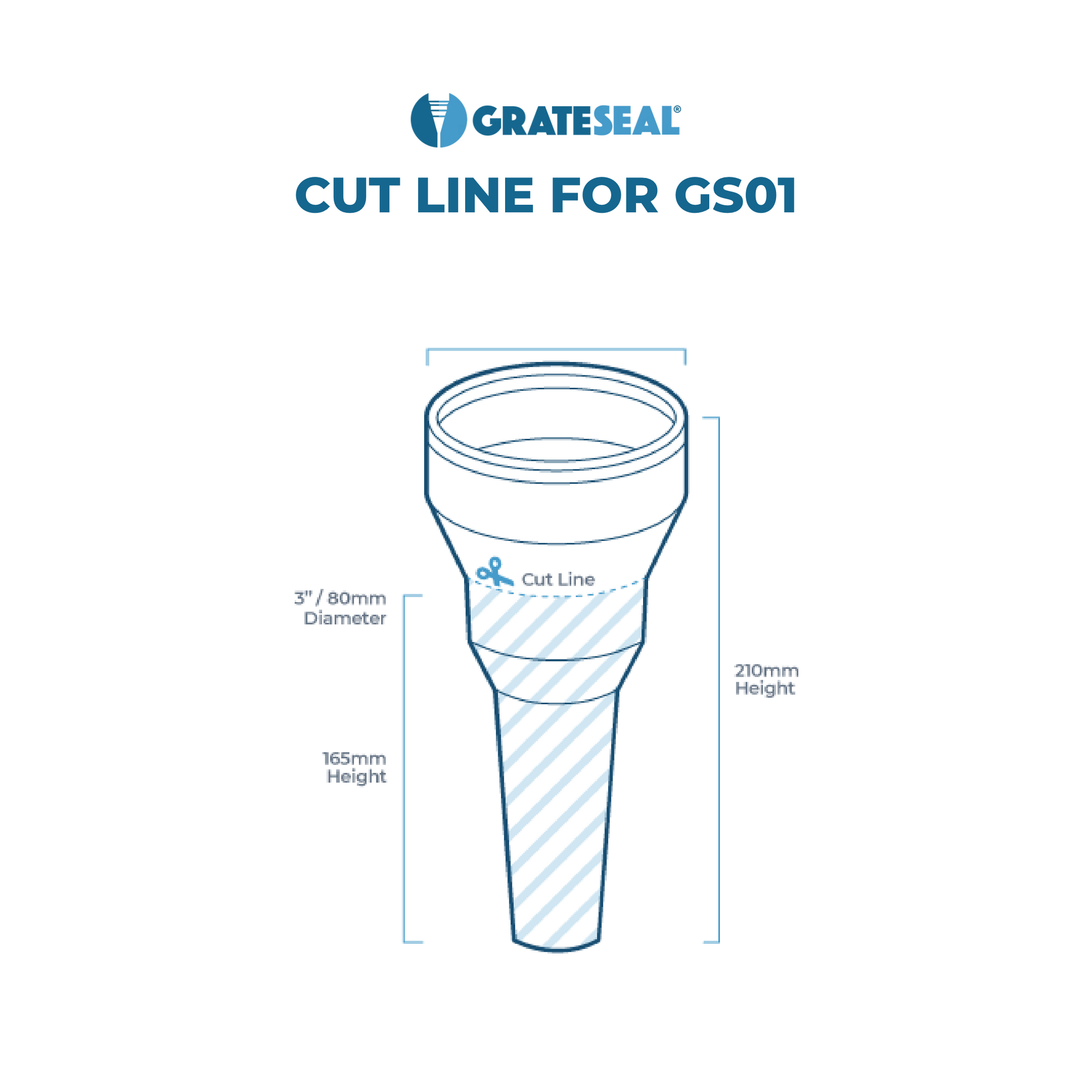

Simply cut along the marked line to convert from 4" or 100mm to 3" or 80mm (GS01 model only). You can also watch a tutorial on our Youtube channel here.

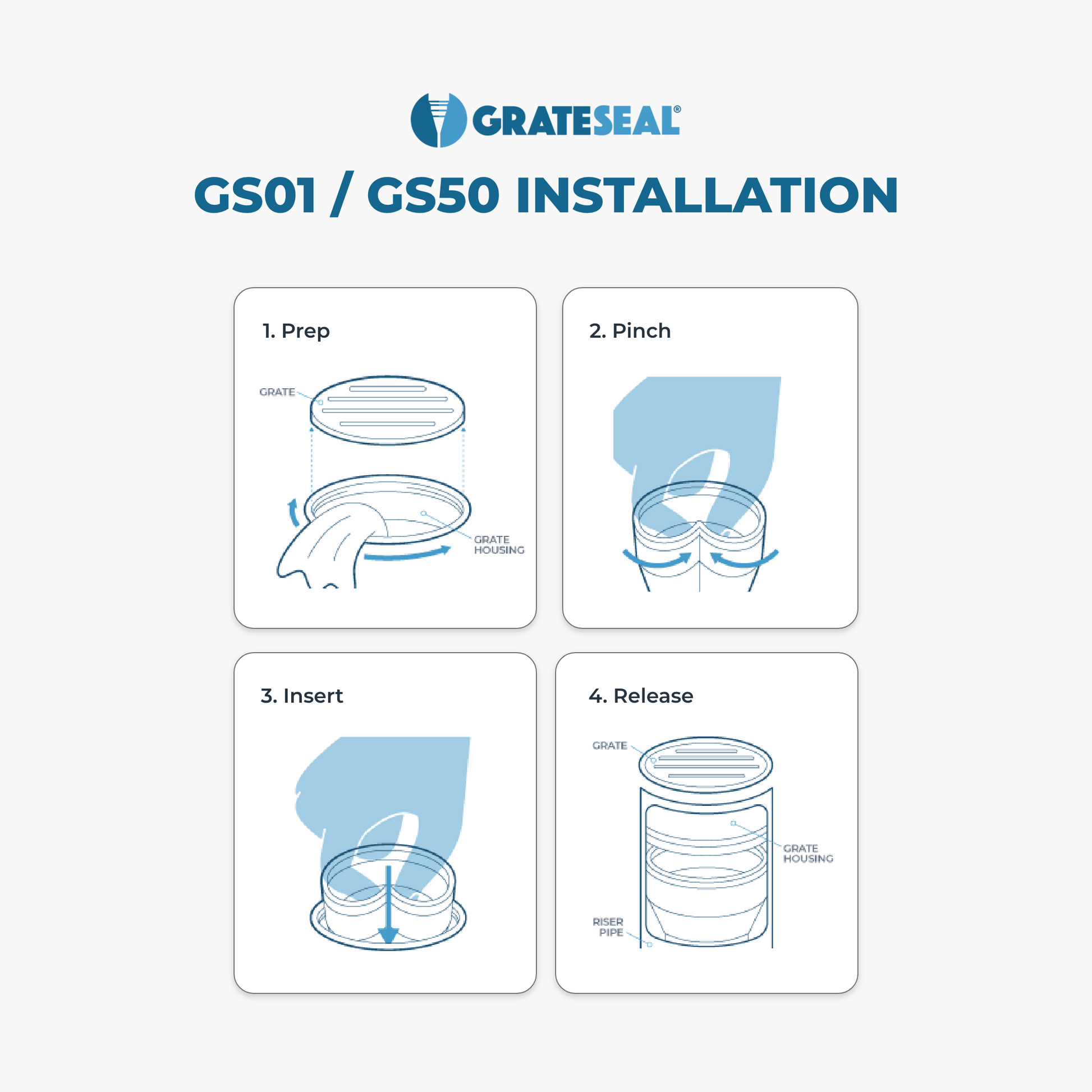

Installation TipsIt's so easy to install!
Learn moreAfter spending $3k on replacing a cracked , root infested fitting under our concrete slab ensuite, imagine our displeasure when the sewer stink was unabated. Enter Grateseal in our shower drain and floor waste and Bingo... No more stink! Thank you guys brilliant product and a piece of cake to install.
Great product - quick express post delivery
I think it's a good product. Unfortunately the drain smell still comes up the bath and sink plug holes. Maybe it works better for others situations.
These are the best to stop the smell from drains coming through into ur bathroom. I've purchased 8 in total now & they are amazing. Very quick delivery & great quality product. Definitely recommend.
I had a fitting enquiry due to an odd sized floor drain and was given full fitting instructions by the super helpful guys here. Placed an order which arrived really quickly. Fitted it in a jiffy, does exactly what it says, floor drain is now silent and odourless.
